Our R410A is a zero ozone depletion (ODP) hydrofluorocarbon (HFC) refrigerant blend. R410A is a binary blend of R32 and R125 (50%/50%) developed as a replacement refrigerant for air conditioning applications previously designed for HCFC R22. Due to both its higher refrigerating capacity and pressure, R410A should not be used as a retrofit refrigerant in existing R22 equipment.

Applications

Air Conditioning Units
Heat Pumps
Cold Storage
Industrial and Commercial Refrigeration

Lubricant Recommendation

Polyolester (POE) lubricants must be used with R410A since it is not miscible with mineral or alkyl benzene lubricants. New R410A equipment will be charged with the OEM recommended lubricant, ready to use with our R410A.

Charging

Charging with Gas UK R410A can be done either as a vapour or a liquid.

Properties and Performance

R410A is a near-azeotropic HFC refrigerant blend that meets the industry’s needs for many new air conditioning systems. R410A has an A1 safety rating from ASHRAE (lowest levels of toxicity and flammability), zero ozone depletion potential and a Global Warming Potential (GWP) of 2088.

Specifications

Components / Composition

Difluoromethane - R32 (50 +0.5 -1.5 %w/w)
Pentafluoroethane - R125 (50 +1.5 -0.5 %w/w)
Purity - Minimum 99.5 %w/w
Water Content - Maximum 10.0 ppm w/w

-----------------------------------------------------------

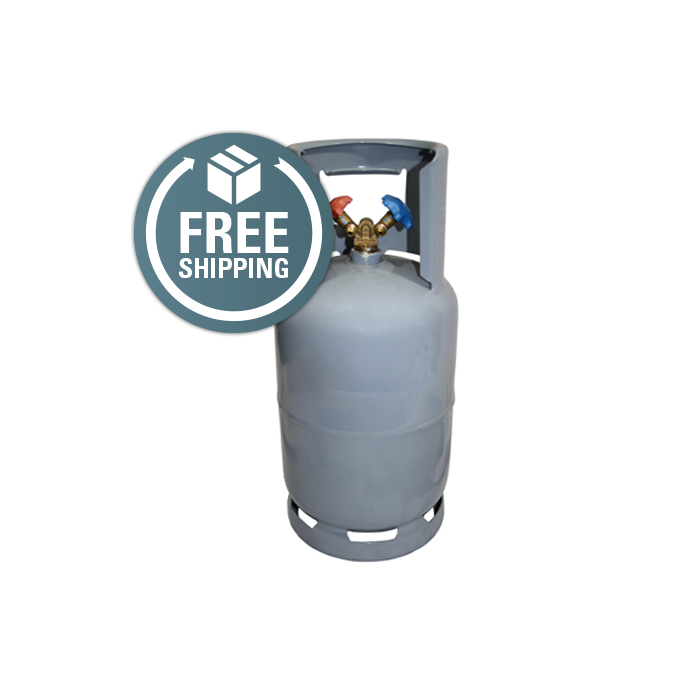

Cylinder ID Code - RG12
Gas Code - 119
Water Capacity - 12.3 Litres
Approx. Height - 510mm
Approx. Diameter - 229mm
Approx. Gross Weight - 18kg
Approx. Nominal Contents - 10kg
Outlet Valve - Liquid/Vapour (1/4" SAE Flare) CGA 165 RH
Shipping Class - 2.2 (UN3159)

Cylinder dimensions and weights are approximate measures and may vary.

SDS - Download our Safety Data Sheet
