UniWeld Plus is purpose-designed for MIG welding of carbon, carbon manganese and low-alloy steels, our gas gives superb weld quality and excellent penetration, together with minimum spatter and low fume levels.

Helium-containing shielding gases allow more energy to be transferred into the weld than pure argon, but the addition of argon improves the arc stability and initiation. Our UniWeld gas will help a skilled welder to produce smooth.

Our UniWeld Plus is a proven mixture offering the highest quality, meeting or exceeding ISO 14175:2008 standards.

Advantages

Improves weld quality and reduces rejects, with excellent penetration characteristics and a greater tolerance to variations in weld parameter settings.
Up to 20% increase in manual weld speeds when compared to conventional mixtures.
Particularly suitable for welding thick carbon steel, allows welding on solid and ﬂux-cored wires.
Protects the work environment, minimal ozone generation.

Applications

Commonly used in the MIG welding of components.
Suitable for both manual and automatic applications.
In automatic and robotic applications, high welding speeds achieved and are important for high production rates and cost-efficiencies.
High-integrity welds such as those required by the nuclear industry.

Fabrications

(MIG) Carbon Steel

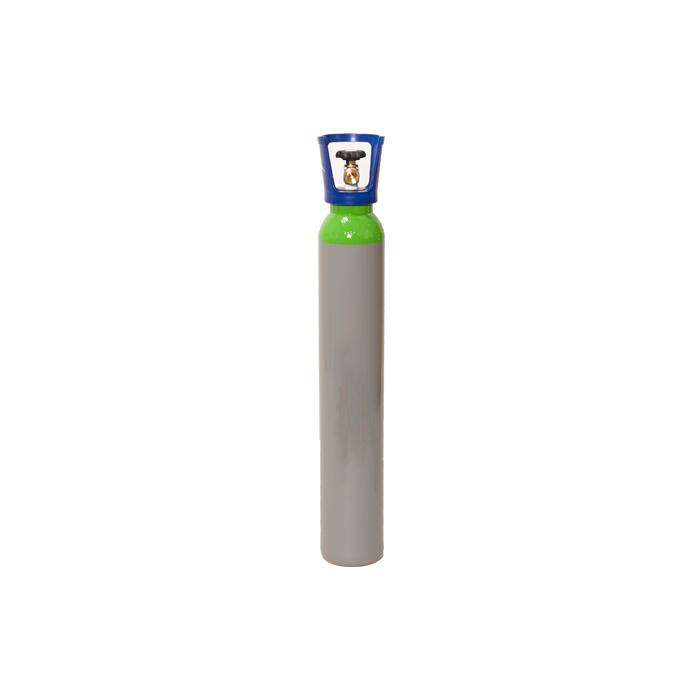

Cylinder ID Code - GU10
Gas Code - 104
Water Capacity - 10 Litres
Approx. Height - 910mm
Approx. Diameter - 140mm
Approx. Gross Weight - 20kg
Approx. Nominal Contents - 2,2m3
Approx. Fill Pressure 200bar - 2900psi
Outlet Valve - BS No.3: 5/8" BSP RH INT Valve
Shipping Class - 2.2 (UN1956)

Cylinder dimensions and weights are approximate measures and may vary.

68% Argon - 20% Helium - 12% Carbon Dioxide

SDS - Download our Safety Data Sheet
